| Les YAMAHA FZ6 S2 Fazer et ABS |
| |
| Caractéristiques techniques des FZ6 S2 Fazer |
| |
 |
| |
| |
| TECHNICAL SPECIFICATION |

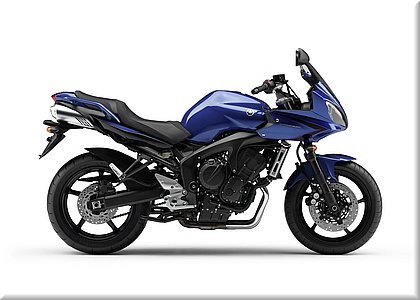

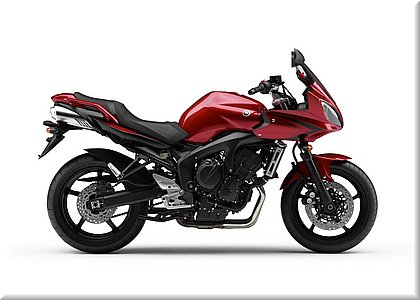

2007 FZ6 Fazer S2 |
| ENGINE |
|
| Type |
Liquid-cooled, 4-stroke, forward inclined |
|
parallel 4-cylinder, DOHC |
| Displacement |
600 cc |
| Bore & stroke |
65.5 x 44.5 mm |
| Compression Ratio |
12.2:1 |
| Max. power |
72.0 kW (98 PS) @ 12,000 rpm |
| Max. torque |
63.1 Nm (6.44 kg-m) @ 10,000 rpm |
| Lubrication |
Wet sump |
| Fuel supply |
Fuel Injection |
| Clutch type |
Wet, multiple-disc |
| Ignition |
TCI |
| Starter system |
Electric |
| Transmission |
Constant mesh, 6-speed |
| Final transmission |
Chain |
| Primary reduction ratio |
86/44 1.955 |
| Secondary reduction ratio |
46/16 2.875 |
| Gear ratio: |
|
| Gear ratio-1st gear |
37/13 2.846 |
| Gear ratio-2nd gear |
37/19 1.947 |
| Gear ratio-3rd gear |
28/18 1.556 |
| Gear ratio-4th gear |
32/24 1.333 |
| Gear ratio-5th gear |
25/21 1.190 |
| Gear ratio-6th gear |
26/24 1.083 |
| CHASSIS |
|
| Frame |
Aluminium die-cast, diamond shaped |
| Front suspension |
Telescopic forks |
| Front wheel travel |
130 mm |
| Rear suspension |
Swingarm (monocross) |
| Rear wheel travel |
130 mm |
| Caster angle |
25° |
| Trial |
97.5 mm |
| Front brake |
Double discs, Æ 298 mm |
| Rear brake |
Single disc, Æ 245 mm |
| Front tyre |
120/70 ZR17M/C (58W) |
| Rear tyre |
180/55 ZR17M/C (73W) |
| DIMENSIONS |
|
| Overall length |
2,095 mm |
| Overall width |
750 mm |
| Overall height |
1,210 mm |
| Seat height |
795 mm |
| Wheelbase |
1,440 mm |
| Min. ground clearance |
145 mm |
| Dry weight |
186 kg |
| Fuel tank capacity |
19.4 litres |
| Oil capacity |
3.4 litres |
| Specification are subject to change without notice, in accordance with national regulation and legislations |
|
|
| |
| |
 |
| |
| |
| TECHNICAL SPECIFICATION |
2007 FZ6 Fazer S2 ABS |
| ENGINE |
|
| Type |
Liquid-cooled, 4-stroke, forward inclined |
|
parallel 4-cylinder, DOHC |
| Displacement |
600 cc |
| Bore & stroke |
65.5 x 44.5 mm |
| Compression Ratio |
12.2:1 |
| Max. power |
72.0 kW (98 PS) @ 12,000 rpm |
| Max. torque |
63.1 Nm (6.44 kg-m) @ 10,000 rpm |
| Lubrication |
Wet sump |
| Fuel supply |
Fuel Injection |
| Clutch type |
Wet, multiple-disc |
| Ignition |
TCI |
| Starter system |
Electric |
| Transmission |
Constant mesh, 6-speed |
| Final transmission |
Chain |
| Primary reduction ratio |
86/44 1.955 |
| Secondary reduction ratio |
46/16 2.875 |
| Gear ratio: |
|
| Gear ratio-1st gear |
37/13 2.846 |
| Gear ratio-2nd gear |
37/19 1.947 |
| Gear ratio-3rd gear |
28/18 1.556 |
| Gear ratio-4th gear |
32/24 1.333 |
| Gear ratio-5th gear |
25/21 1.190 |
| Gear ratio-6th gear |
26/24 1.083 |
| CHASSIS |
|
| Frame |
Aluminium die-cast, diamond shaped |
| Front suspension |
Telescopic forks |
| Front wheel travel |
130 mm |
| Rear suspension |
Swingarm (monocross) |
| Rear wheel travel |
130 mm |
| Caster angle |
25° |
| Trial |
97.5 mm |
| Front brake |
Double discs, Æ 298 mm |
| Rear brake |
Single disc, Æ 245 mm |
| Front tyre |
120/70 ZR17M/C (58W) |
| Rear tyre |
180/55 ZR17M/C (73W) |
| DIMENSIONS |
|
| Overall length |
2,095 mm |
| Overall width |
750 mm |
| Overall height |
1,210 mm |
| Seat height |
795 mm |
| Wheelbase |
1,440 mm |
| Min. ground clearance |
145 mm |
| Dry weight |
191 kg |
| Fuel tank capacity |
19.4 litres |
| Oil capacity |
3.4 litres |
| Specification are subject to change without notice, in accordance with national regulation and legislations |
|
|
| |
| |
 |
| |
| |
|
 |
| |
 |
| Le forum des Fazer |
| |
| Caractéristiques techniques des FZ6 S2 |
| |
| TECHNICAL SPECIFICATION |
2007 FZ6 S2 |
| ENGINE |
|
| Type |
Liquid-cooled, 4-stroke, forward inclined |
|
parallel 4-cylinder, DOHC |
| Displacement |
600 cc |
| Bore & stroke |
65.5 x 44.5 mm |
| Compression Ratio |
12.2:1 |
| Max. power |
72.0 kW (98 PS) @ 12,000 rpm |
| Max. torque |
63.1 Nm (6.44 kg-m) @ 10,000 rpm |
| Lubrication |
Wet sump |
| Fuel supply |
Fuel Injection |
| Clutch type |
Wet, multiple-disc |
| Ignition |
TCI |
| Starter system |
Electric |
| Transmission |
Constant mesh, 6-speed |
| Final transmission |
Chain |
| Primary reduction ratio |
86/44 1.955 |
| Secondary reduction ratio |
46/16 2.875 |
| Gear ratio: |
|
| Gear ratio-1st gear |
37/13 2.846 |
| Gear ratio-2nd gear |
37/19 1.947 |
| Gear ratio-3rd gear |
28/18 1.556 |
| Gear ratio-4th gear |
32/24 1.333 |
| Gear ratio-5th gear |
25/21 1.190 |
| Gear ratio-6th gear |
26/24 1.083 |
| CHASSIS |
|
| Frame |
Aluminium die-cast, diamond shaped |
| Front suspension |
Telescopic forks |
| Front wheel travel |
130 mm |
| Rear suspension |
Swingarm (monocross) |
| Rear wheel travel |
130 mm |
| Caster angle |
25° |
| Trial |
97.5 mm |
| Front brake |
Double discs, Æ 298 mm |
| Rear brake |
Single disc, Æ 245 mm |
| Front tyre |
120/70 ZR17M/C (58W) |
| Rear tyre |
180/55 ZR17M/C (73W) |
| DIMENSIONS |
|
| Overall length |
2,095 mm |
| Overall width |
755 mm |
| Overall height |
1,085 mm |
| Seat height |
795 mm |
| Wheelbase |
1,440 mm |
| Min. ground clearance |
145 mm |
| Dry weight |
180 kg |
| Fuel tank capacity |
19.4 litres |
| Oil capacity |
3.4 litres |
| Specification are subject to change without notice, in accordance with national regulation and legislations |
|
|
| |
| |
 |
| |
| |
| TECHNICAL SPECIFICATION |

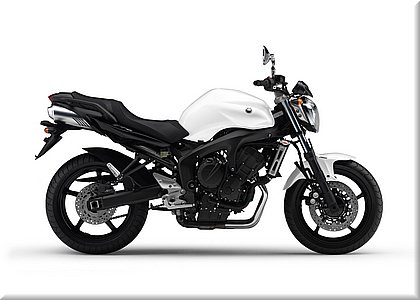

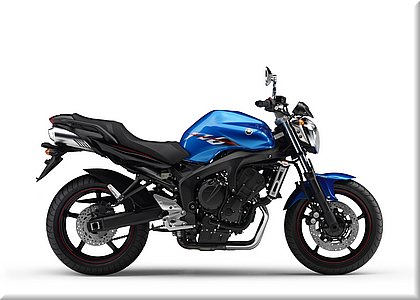

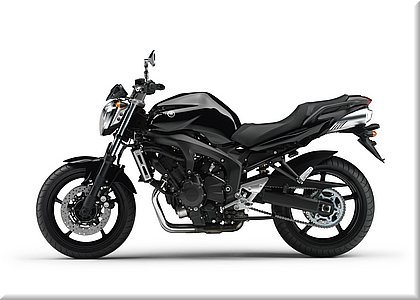

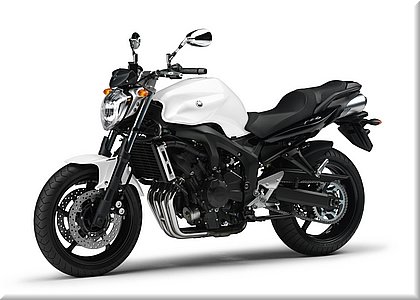

2007 FZ6 S2 ABS |
| ENGINE |
|
| Type |
Liquid-cooled, 4-stroke, forward inclined |
|
parallel 4-cylinder, DOHC |
| Displacement |
600 cc |
| Bore & stroke |
65.5 x 44.5 mm |
| Compression Ratio |
12.2:1 |
| Max. power |
72.0 kW (98 PS) @ 12,000 rpm |
| Max. torque |
63.1 Nm (6.44 kg-m) @ 10,000 rpm |
| Lubrication |
Wet sump |
| Fuel supply |
Fuel Injection |
| Clutch type |
Wet, multiple-disc |
| Ignition |
TCI |
| Starter system |
Electric |
| Transmission |
Constant mesh, 6-speed |
| Final transmission |
Chain |
| Primary reduction ratio |
86/44 1.955 |
| Secondary reduction ratio |
46/16 2.875 |
| Gear ratio: |
|
| Gear ratio-1st gear |
37/13 2.846 |
| Gear ratio-2nd gear |
37/19 1.947 |
| Gear ratio-3rd gear |
28/18 1.556 |
| Gear ratio-4th gear |
32/24 1.333 |
| Gear ratio-5th gear |
25/21 1.190 |
| Gear ratio-6th gear |
26/24 1.083 |
| CHASSIS |
|
| Frame |
Aluminium die-cast, diamond shaped |
| Front suspension |
Telescopic forks |
| Front wheel travel |
130 mm |
| Rear suspension |
Swingarm (monocross) |
| Rear wheel travel |
130 mm |
| Caster angle |
25° |
| Trial |
97.5 mm |
| Front brake |
Double discs, Æ 298 mm |
| Rear brake |
Single disc, Æ 245 mm |
| Front tyre |
120/70 ZR17M/C (58W) |
| Rear tyre |
180/55 ZR17M/C (73W) |
| DIMENSIONS |
|
| Overall length |
2,095 mm |
| Overall width |
755 mm |
| Overall height |
1,085 mm |
| Seat height |
795 mm |
| Wheelbase |
1,440 mm |
| Min. ground clearance |
145 mm |
| Dry weight |
185 kg |
| Fuel tank capacity |
19.4 litres |
| Oil capacity |
3.4 litres |
| Specification are subject to change without notice, in accordance with national regulation and legislations |
|
|
| |
| |
 |
|
